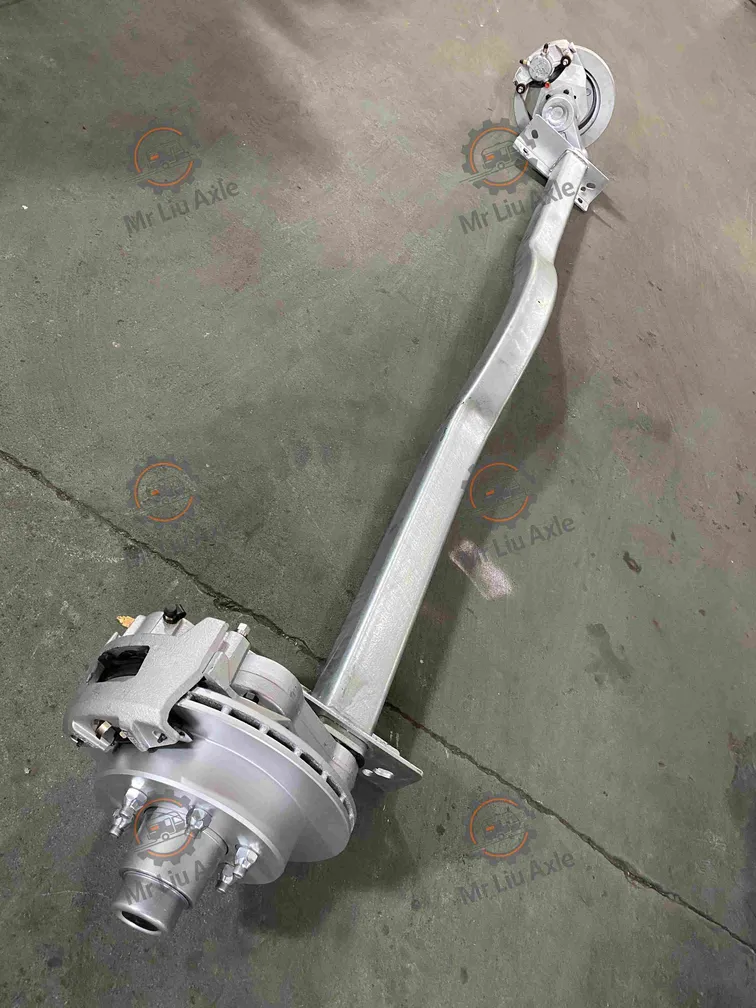

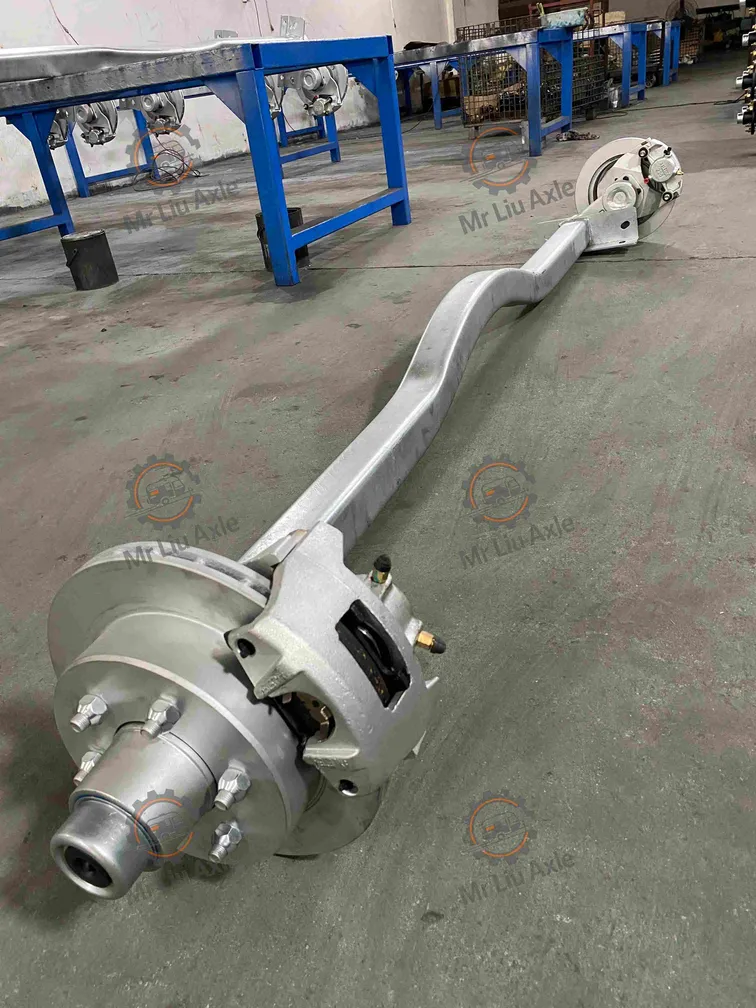

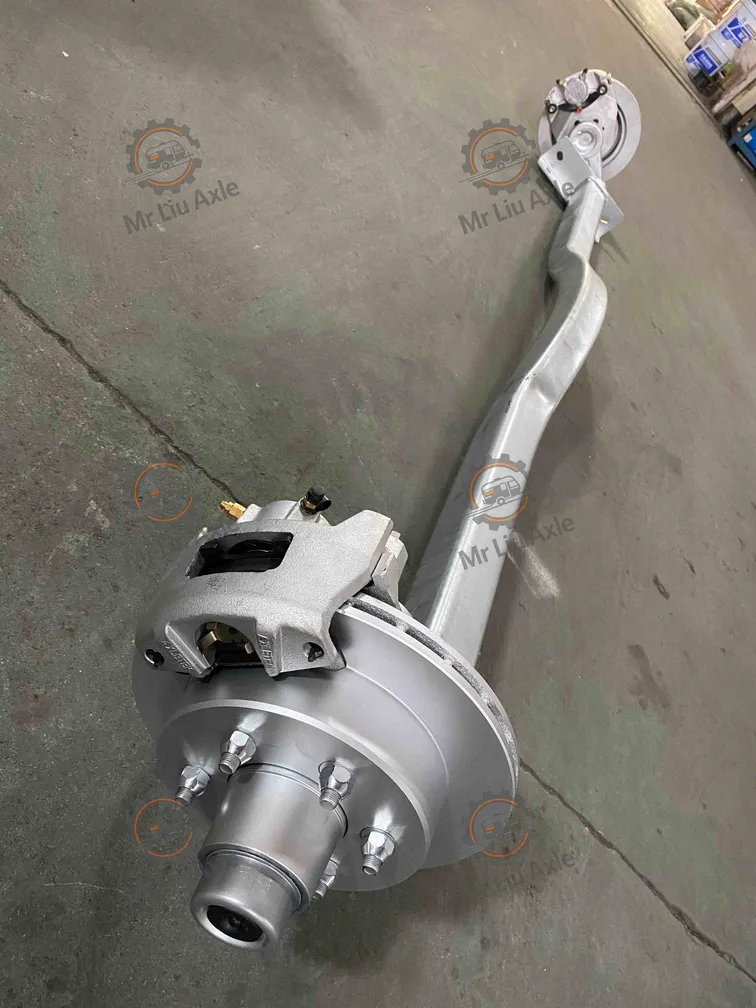

Boat Trailer Torsion Axle – V-Bend Hot-dip Galvanized 3500 / 5200 / 6000 / 7000 lbs Marine Axle Range
This boat trailer torsion axle range features a V-bend design with hot-dip galvanized finish, engineered specifically for American bass boat trailers, pontoon trailers, jet ski trailers and watercraft haulers. Available in 3500, 5200, 6000 and 7000 lb capacities, these heavy duty marine axles deliver corrosion-resistant performance and independent suspension comfort in freshwater and saltwater environments.
The V-bend configuration allows the axle beam to drop below the trailer frame, providing critical ground clearance for low-profile boat hulls while maintaining proper tongue height for safe towing. Each torsion axle in this range is hot-dip galvanized after fabrication, ensuring complete zinc coverage inside and outside the axle tube for maximum saltwater protection.
Key Specifications
- Load Capacities: 3500 / 5200 / 6000 / 7000 lbs per axle
- Axle Type: V-bend torsion axle with independent suspension
- Finish: Hot-dip galvanized for marine corrosion resistance
- Bend Style: V-drop design for boat hull ground clearance
- Hub Patterns: 5×4.5″, 6×5.5″, 8×6.5″ – USA standard
- Brake Options: Unbraked idler or electric/hydraulic brake compatible
- Applications: Bass boats, pontoon boats, watercraft, jet skis
Applications
- Bass boat trailers and fishing boat trailers
- Pontoon boat trailers and deck boat trailers
- Jet ski trailers and personal watercraft trailers
- Small watercraft trailers and kayak haulers
- Saltwater and freshwater marine trailers
- Single and tandem axle boat trailer setups
Why V-Bend Galvanized Torsion Axles for Boats
Traditional straight axles sit too high for most boat trailers, creating hull interference and launch ramp scraping issues. The V-bend design lowers the axle centerline while maintaining full load capacity. Combined with hot-dip galvanizing, this products range offers the durability and corrosion protection that marine environments demand.
Related Trailer Parts
Complete your boat trailer axle system with our trailer brake drums and marine hub assemblies. We also supply standard torsion axles and spring axles for non-marine trailer applications.
For reference on V-bend torsion axles and boat trailer axle components, see Venture Trailers Torsion Axle Parts, a leading American boat trailer parts supplier.
This boat trailer torsion axle range is available at OEM wholesale pricing for American boat trailer manufacturers, marine dealers and custom builders. Contact us for custom V-bend angles, hub face widths and saltwater-rated specifications.
