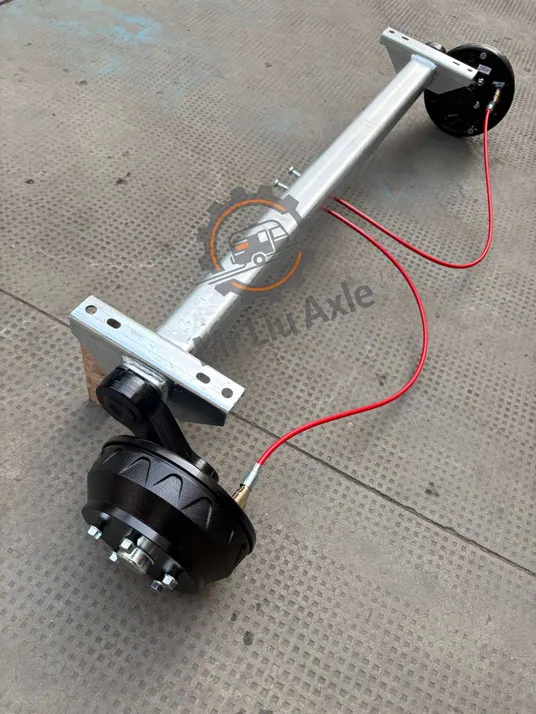

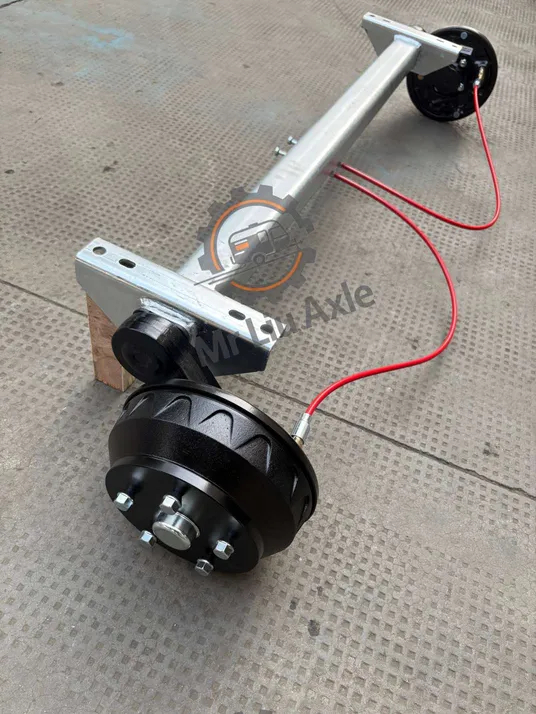

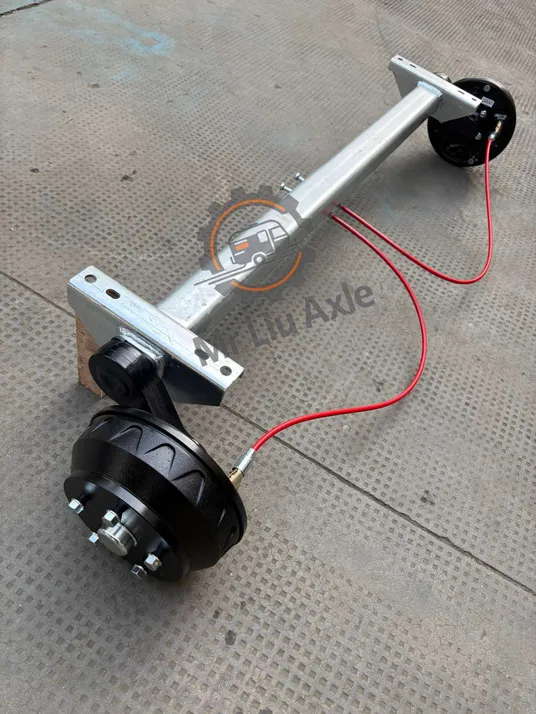

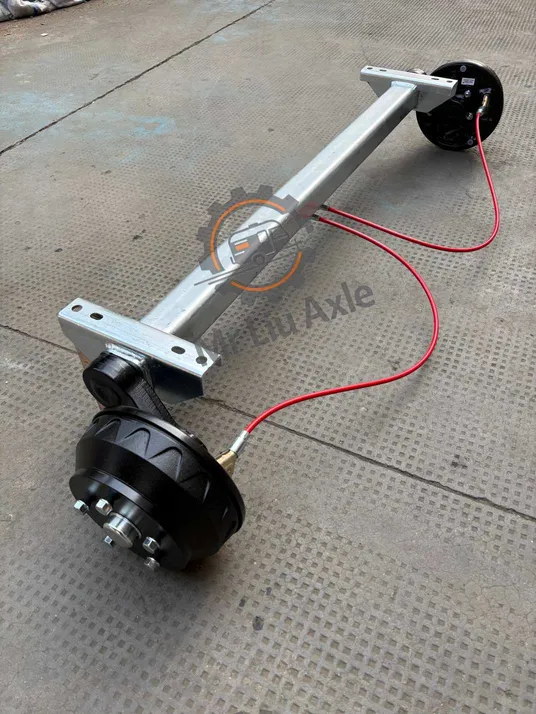

1800 kg Knott Torsion Axle – 250×40 Heavy Duty Braked Axle for European Caravans
This 1800 kg knott torsion axle is a heavy duty OEM braked axle engineered for European caravans, camper trailers, medium utility trailers and off-road camping builds. Featuring an integrated 250×40 mm brake drum and independent rubber-damped torsion suspension, this braked axle delivers superior stopping power and smooth load handling for trailers rated up to 1800 kg.
Built to Knott-compatible specifications, this 1800kg knott torsion axle combines a forged torsion arm with high-strength steel tubing and a precision-machined 250×40 brake drum. The larger drum diameter provides increased braking surface and heat dissipation compared to standard 200×50 drums, making it ideal for heavier caravans and fully loaded campers navigating mountain passes or extended highway tours. The 5×112 bolt pattern ensures direct compatibility with standard European wheels.
Key Specifications
- Load Capacity: 1800 kg per axle
- Axle Type: Braked torsion axle with independent suspension
- Brake Drum Size: 250×40 mm (European heavy duty standard)
- Bolt Pattern: 5×112 mm
- Brand Compatibility: Knott and standard European medium trailer chassis
- Brake System: Overrun mechanical drum brake compatible
- Application: European caravans, campers and medium utility trailers
- Construction: Forged torsion arm with high-strength steel tube
- Finish: Corrosion-resistant coating for European road conditions
Applications
- European heavy duty caravans and twin-axle touring trailers
- Off-road camping trailers and overland builds
- Medium utility trailers and tradesman trailers
- Large camper trailers and mobile cabins
- Replacement for worn 1800 kg braked torsion axles
- OEM production for European caravan and trailer manufacturers
Why Choose This 1800kg Knott Torsion Axle
The 250×40 brake drum offers a larger braking surface than standard 200×50 configurations, providing more confident stopping for heavier, faster-moving trailers. The independent torsion suspension keeps each wheel in contact with uneven terrain, reducing cargo shift and improving ride comfort for passengers and equipment alike. Built to true Knott dimensions, this axle bolts directly to standard European suspension arms and chassis mounts.
Related Trailer Parts
Complete your braked axle system with our trailer hub assemblies and trailer brake drums. We also supply heavy duty torsion axles and spring axles for European medium and heavy duty trailers.
For reference on Knott Autoflex VGB 18-MV 1800 kg braked torsion axles for European trailers, see YA Trailers Knott Autoflex VGB 18-MV 1800 kg.
This 1800kg knott torsion axle with 250×40 brake drum is available at OEM wholesale pricing for European caravan manufacturers, camper builders and medium trailer parts distributors. Contact us for custom hub face widths, brake configurations and bulk orders.
